ordinary type 60kw pwht equipment

BASIC INFO


Quick Details

  • Type: Infrared Heater
  • Power Source: Electric
  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Guansheng
  • Model Number: DWK-D-60kw
  • Dimension(L*W*H): 68*48*48
  • Weight: 29kg
  • Voltage: Rated voltage 380V/415V/440V/480V (three-phase four-wire)
  • Secondary voltage:0-220V;
  • Power(W): 60kw
  • Certification: ISO9001
  • Warranty: One year warranty
  • Recorded sopt: 6(EL3000 CHINO Japan)
  • Temperature point: 6
  • Max. operation Temp: 1000°C/1200℃ .
  • Application: PWHT

Packaging & Delivery

Packaging Details: Fumigation wooden boxes
Delivery Detail: shipment within 7 days after payment received




Product Description

Pwht  equipment

Welding preheating, heat treatment of special temperature control box, weld heat treatment after welding annealing equipment





1.It can set up the temperature value and time value of warming, constant temperature and cooling (i.e. warming velocity, cooling velocity and constant temperature velocity) it has eight sections of setting at most, 0-1000℃ constant temperature, with paper chart recorder(EL3000 CHINO).



2.60 kw rated power; it can take 6 pieces of 10 kw heaters working at the same time at most; heaters with low power can take more. it can handle 6 meters long weld at most.



Features:

1. six-button PXR5 series,intelligent microcomputer operating temperature controller

2.PID control and standard accuracy  ± 1 °C

3.Each point 8 Ramp / Set heating, insulation, cooling

4.Alarm for over-temperature, low temperature

5. The machine can be matched with all kinds of heaters , maintenance, preheating, eliminate hydrogen treatment

Performance:

Rated power 60KW,6 temperature control point and 6 record point ,max.temperature 1000 °C/1200℃

 Specifications:



Model

wattage(kw)

Working voltage

Channel

Record points

Max current

DWK-D-60

60

 380V/415V/440V/480V

 (phase wire)

6

6

90A

DWK-D-120

120

 380V/415V/440V/480V

 (phase wire)

12

12

180A

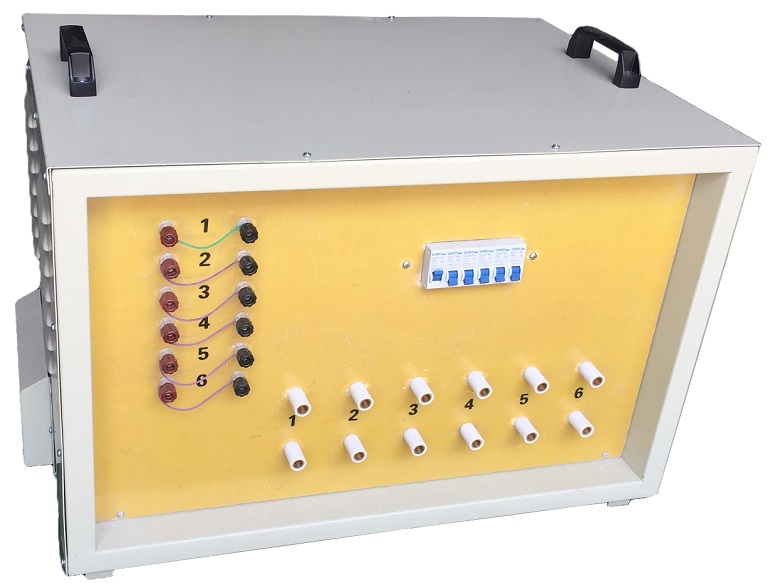

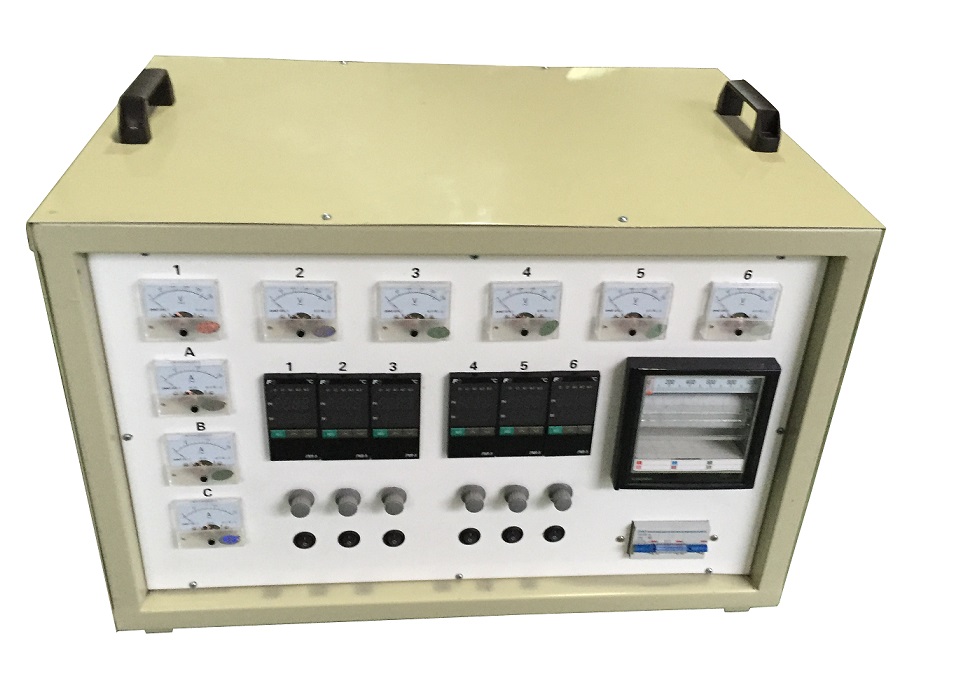

full set of 60kw normal.jpg

Application of  pwht  equipment

Applications&using fields (40).JPG







Packaging & Shipping

 911931 - .jpg





FAQ

1. Over 15 years experience in Far infrared heating
2. Heating furnace is safety and reliability, long life
3. Our heating equipment export to Italy, Mexico ,Turkey, Slovakia, Pakistan, Iran,Vietnam,India,     Malaysia,Kazakhstan, Uzbekistan,Russia,Ukraine,Azerbaijan,Indonesia,South Africa,etc. And winning great popularity
4. One year warranty and life-time technology support
5. Fast, timely delivery & reliable after-sales service
6. Spare parts & tools delivered with harvester for daily maintenance
7. Customers & quality first
8. Can provide oversea technical support
9. Free design for custom





1. Why the price is so low?
You are ordering directly from the factory.

 2.Where is your factory located? How can I visit there?
Our factory is located in Suzhou City, Jiangsu Province, China,about 1 hours bus ride from Shanghai .All our clients, from home or abroad, are warmly welcome to visit us.

 3.What type of payment do you have available?
We accept TT and L/C,as sample order,the Western union,Money gram and Aliexpress is available.

 4.How can I get some samples?
We are honored to offer you samples.
5.How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.



Welcome to contact us for more details ,most competitive price for you!
